POST-PROCESSOR SIMULATION

WITH ICAM’S VIRTUAL MACHINE®

See How Your CNC Will Behave While You Post-Process Your CAM File

Virtual Machine® enables NC programmers to graphically simulate and test programs, easily & automatically, against collisions and over-travels. Virtual Machine® allows NC programmers to avoid and correct possible programming errors that may have resulted in costly machine tool collisions and defective parts. Virtual Machine® can also be seamlessly combined with CAM-POST®, providing Graphic Post-Processing™ – machine simulation during the post-processing phase. Additionally, Virtual Machine® can simulate G-code by implementing ICAM’s Control Emulator™ verification software.

See our system requirements

Or, click below to get a Post-processor simulation for your machine.

ICAM Desktop post processor simulation

Supports a Wide Range of CAD/CAM Systems

Virtual Machine® is built for complete compatibility with all major CAD/CAM systems like CATIA, NX CAM, creo & Mastercam. This flexibility allows the software to be quickly and easily integrated into your existing workflow with minimal implementation time.

Don’t see your software listed? Click here to see the complete list.

Mastercam Post-Processer & CNC Simulator Logo
Siemens NX CAM Post-Processer & CNC Simulator Logo
CATIA Post-Processer & CNC Simulator Logo
Hypermill

Compatible with All Types & Models of CNC Machines & Controllers

Virtual Machine’s advanced simulation capabilities support all major makes and models of CNC Machine-Controller pairings including industry leaders like Mazak, Fanuc & Siemens.

Don’t see your brand listed? Click here to see the complete list of our supported machines & controllers.

Mazak CNC Simulator
DMG CNC Simulator
Omax CNC Simulator
Makino CNC Simulator
Modig CNC Simulator
DST CNC Simulator
DemoVideo

See our Machine Simulation in Action

Looking to see our Machine Simulation Solutions in Action? Click on a category from the selection below for quick videos showcasing our simulation tackling a number of different controller and machine brands, kinematics, and special options.

ThreeAxis
FiveAxis
MillTurn
uhf
Waterjet

Simulate CNC Machining One Block at a Time

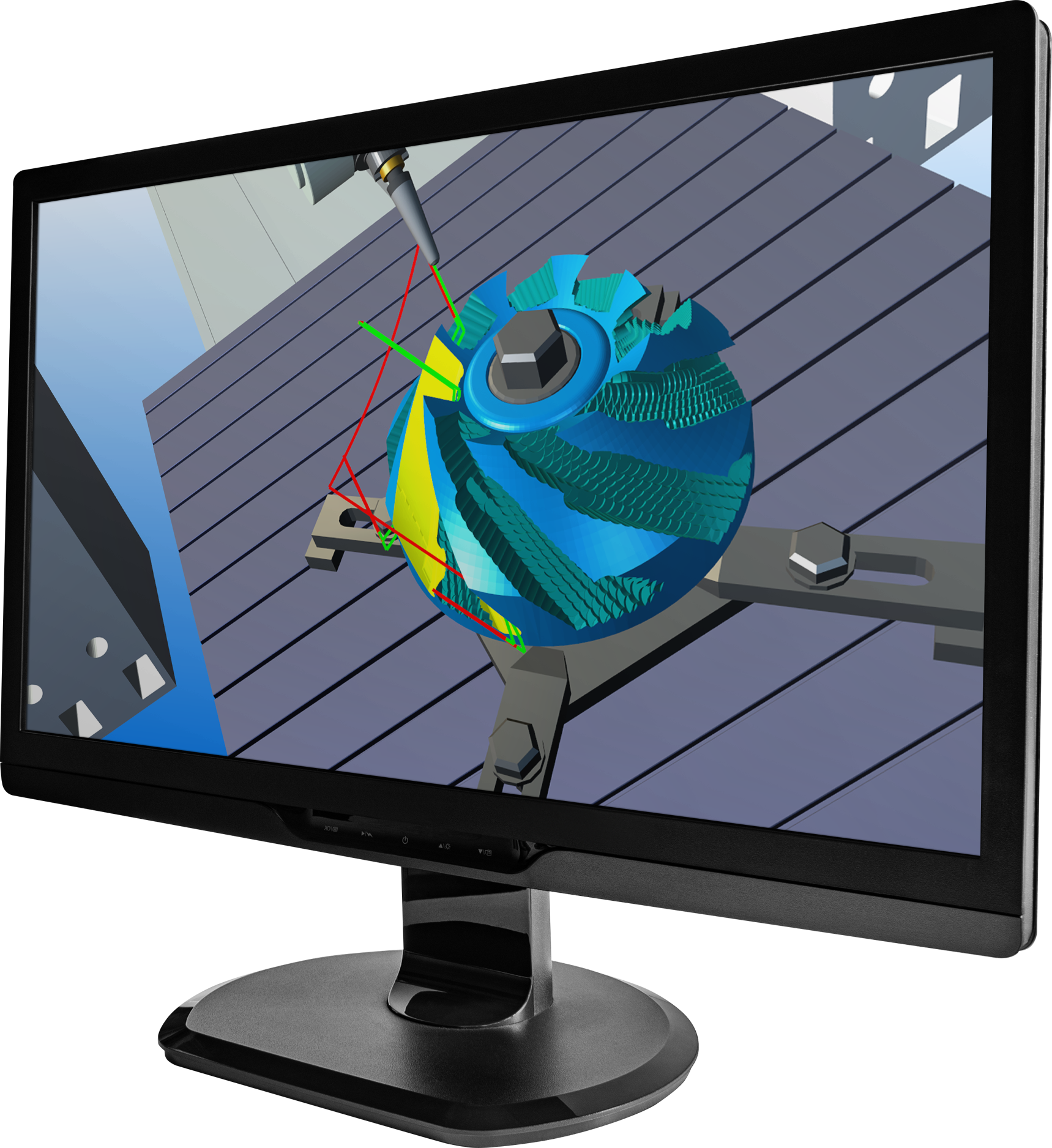

Graphic NC Post-Processing™ is a real-time graphic simulation of the block-to-block machine tool motion instructions generated by the NC post-processor. Graphic NC Post-Processing uses a single database to simultaneously execute the NC post-processor and the Virtual Machine® graphic engine. Since the two technologies are fully integrated, Virtual Machine® provides real-time feedback to the post-processor; thereby, allowing manufacturing issues such as machine collisions and over-travel to be automatically detected and repaired.

Supports Mill/Turn Machining Centers

Virtual Machine® features full support for mill/turn centers including synchronizing dual turret merging lathes, accurately simulating constant surface speed as well as defining and modelling lathe tool inserts and generic 3D tool holders. Virtual Machine® also provides the environment to define a rotary axis as either a spindle or a lathe tool turret providing greater support for different machines.

Multi-Setup

This feature supports Virtual Machine® simulation of manufacturing processes that involve one or more changes of clamping and/or part location on the machine. Multi-setup also automatically tracks the in-process stock state as a part progresses from one manufacturing program to another.

Simulation Recording

This feature automatically records the complete post-processing and simulation session for later review and analysis. Programs can be post-processed with Virtual Machine® simulation overnight and/or in background and then later viewed on the same or a different workstation.

Material Removal

Virtual Machine® supports superior material removal capabilities for in-process stock collision and gouge detection. This functionality allows NC programmers to compare the processed stock model to the original CAD/CAM design. Virtual Machine® computes in-process stock geometry to identify and display gouges, excess material, inaccessible areas and rapid-motion collisions during the post-processing and verification phase.

Unique Timeline Control

Virtual Machine® offers a unique Timeline Control that provides bi-directional review and playback of NC programs at any moment within the machining cycle. This unique function allows programmers to visualize and test NC post-processor for maximum output optimization.

Cost-Effective NC Tape Proofing

Virtual Machine® detects and corrects collisions between machine components, in real-time, during post-processing. As a result, Virtual Machine® reduces scrap materials and minimizes tool replacements, while increasing machine utilization and improving part quality.

More Efficient Post & Model Development

The machine tool and controller data for both Virtual Machine and CAM-POST® are stored and managed in the same database. This eliminates the error-prone and time-consuming alternative of entering the same data twice when using a non-integrated solution.

Machine Tool Motion Simulation

Virtual Machine® may be synchronized with the CAM-POST® interface at any collision or over-travel error; thereby, allowing the user to graphically examine the part program and tape output precisely where the problem occurred. With this powerful tool, errors that could have damaged the part, tool and fixture can be eliminated.

Get Shop Floor Documentation from your Simulation

Included with all our simulation solutions, the ShopDoc generator provides you with a breakdown of the details of the tools used during the job, the positioning of fixtures and part for multi-setup operations, and much more. This documentation is designed to allow you to smoothly transition from CAM system to shop-floor operations.

Read More

Complete Integration with CAM-POST® & More

Get even more efficient NC Code in less time by adopting the unique Adaptive Post-Processing technology. By running CNC simulation, tool-path optimization and post-process in one process, you can save 25% to 35% in programming and machining cycle time.

+ Learn More About Adaptive Post-Processing

Post-Processors

Leading multi-CAM post-processors with advanced look ahead & powerful macros.

sim-img

G-Code Simulation

Easily identify & resolve collisions & over-travel with integrated post-processing & machine simulation.

Optimization Tools

Automatically create optimized & safe rapid position motions for any machine kinematics.

A Post-Processing Simulator with Real-World Savings

Virtual Machine® is designed from the gate to deliver substantial savings in NC programming time. By testing while you develop your post-processor, you can considerably cut down on the time you spend testing, modifying and retesting your CAM code.

” Before we purchased ICAM, programmers at C.E. Machine had to generate  NCI through the CAM software, use a third party post-processing software to post, and then import all part, stock, and tool models into a separate verification software before programs could be sent to the shop floor.  With the solution ICAM has provided, programmers now use a single software suite to do all of the above simultaneously. “

Aaron Schwaiger, NC Programmer at C.E. Machine Company

+ Read More
